This dialog allows to define new [JSup tag|tags] or to edit existing ones.
It can be accessed from:

• [JSup Tag list dialog|Tag list dialog];
• [JSup Alarm list|Alarm list] by pressing the Edit tag button or with a double click over an alarm;
• [JSup IOHook list|I/O Hook list] with a double click on an [IOHook|I/O Hook] row.

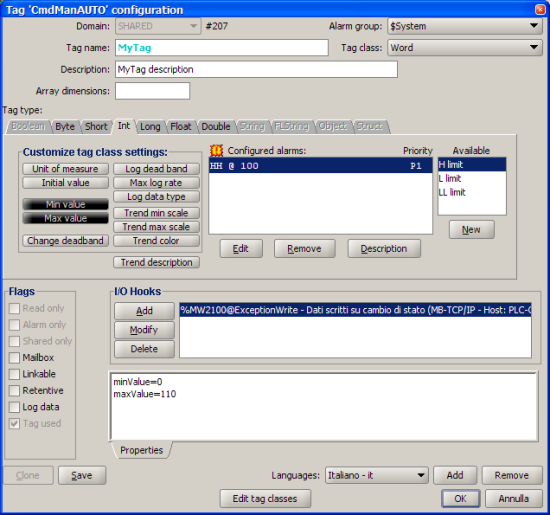

The Tag dialog allows defining all the aspects of a [JSup tag|tag]:

• Domain: define if the tag belongs to the [JSup domains|Shared or User domain].
• Tag name: the unique name of the [JSup tag|tag] (the name must be unique along all [JSup Replaceable objects|Replaceable objects]). When the edited [JSup tag|tag] is about to be renamed a warning message like is displayed: to avoid tag rename when a [#Cloning a tag|clone] was desired.
• Description: A brief description of the [JSup tag|tag] usage/meaning. For boolean [JSup tag alarms|alarm tags] this is also the default alarm description (can be customized with the @B [JSup Using tag properties|property]).
• Alarm group: define the [JSup alarm groups|alarm group] the [JSup tag|tag] and its [JSup tag alarms|alarms] belong to.
• Tag class: a [JSup tag|tag] can inherit many properties from its [JSup Tag classes|tag class]. It's another way to classify [JSup tag|tags], even if they (currently) don't need properties; and a convenient way to quickly change the [JSup Using tag properties|properties] of a group of [JSup tag|tags].
• Array dimensions: if you need to define a [JSup Tag arrays|tag array] you have to specify its dimension size(es) in these fields. For a mono dimensional [JSup Tag arrays|tag array] only a dimension have to be entered (the number of elements of the array). For a multi dimensional (up to 3) [JSup Tag arrays|tag array] enter a comma separated list of dimensions.
• Type specific properties: A set of properties that is specific for the [JSup Tag type|type of the tag]. The alarm definition is also defined (in this area) if the [JSup Tag type|tag type] support [JSup tag alarms|alarms] (see [JSup boolean tag alarm definition|boolean tag alarm definition] and [JSup analog tag alarm definition|analog tag alarm definition]).

• Flags area: a set of check boxes to set some advanced [JSup tag|tag] features and behaviours:

• I/O Hooks: this list shows and defines the tag [IOHook|I/O Hooks] to communicate with remote device. When an [IOHook|I/O Hook] of an existing [JSup tag|tag] is changed a warning message like is showed to avoid existing tag edit instead of a [#Cloning a tag|tag cloning].
• Properties: allows to define [JSup Using tag properties|tag properties] and to override properties inherited from the [JSup Tag classes|tag class]. You can define language specific properties (for a [JSup Multilanguage support|multilanguage application]).
• Edit tag classes: a quick access to the [JSup Tag classes|tag class] definition so new one can be created (or an existing one can be edited) without leaving the tag definition.

Saving tag

By pressing the Ok button the [JSup tag|tag] is saved in the [JSup tag database|tag database] of the [JSup application|application] and the Tag dialog will be closed.

By pressing the Save button the [JSup tag|tag] is saved in the [JSup tag database|tag database] of the [JSup application|application] and the Tag dialog remain opened, so more changes can be done to the [JSup tag|tag] or the saved tag can be cloned.

Cloning a tag

After the Tag dialog is just opened to edit an existing [JSup tag|tag], or after the edited/added [JSup tag|tag] is just saved (with the Save button) the displayed [JSup tag|tag] can be cloned (by pressing the Clone button) to create a new [JSup tag|tag] starting from the current [JSup tag|tag] definition.

At least the tag name must be changed and then cloned [JSup tag|tag] can be saved (with the Ok button if no more clones are needed, with the Save button if you want to create more clones).

When the current [JSup tag|tag] definition has to be saved (because of some changed field) no [JSup tag|tag] clone is possible.
