Available libraries

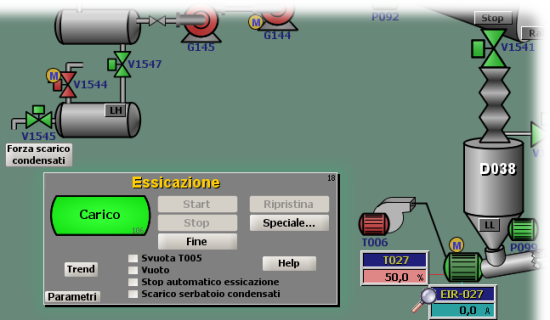

Automi
Automi 1280x1024.jsupLib

This library contains many panels to control a Finite-state machine . This library use a automata description file called automi.txt in the application directory. A sample file (in Italian language) is included in the library archive file.

Commands
Commands.jsupLib

A small library window with some command buttons.

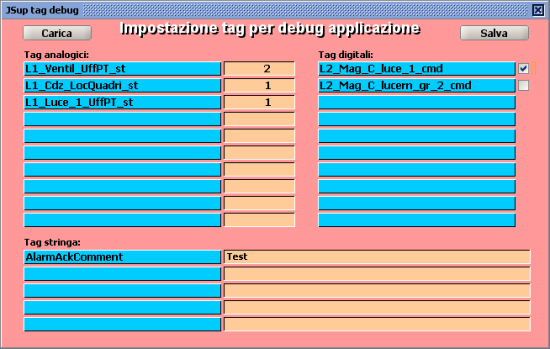

Debug Window
DebugWindow.jsupLib

An utility window that can be raised (at runtime) with the Alt+F2 keys. It is useful to view/set tag values for debug purposes.

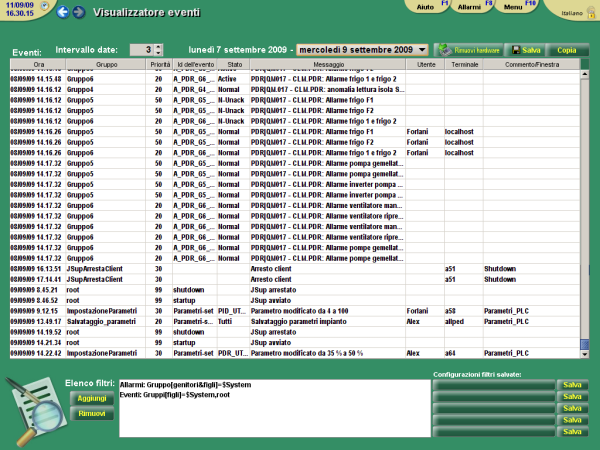

Event viewer
EventViewer 1024x768.jsupLib
EventViewer 1280x1024.jsupLib

This library contains two windows: a viewer for historical alarms and events and a popup to add new event filters.
The viewer windows allows to select the date and the number of days to be looked for events. It allows to save/load event filter configurations and data, plus a button to Safely Remove Hardware.

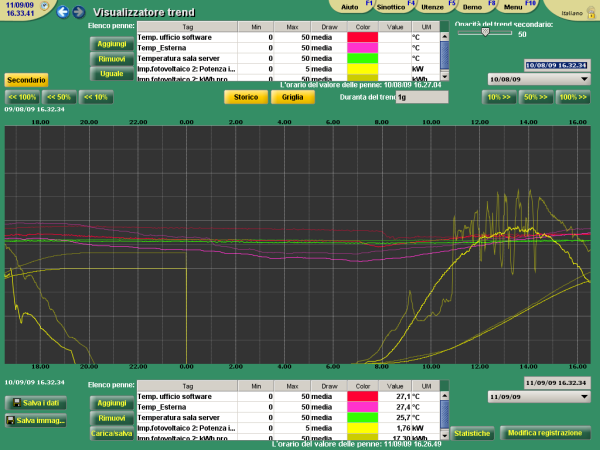

Trend
Trend 1024x768.jsupLib
Trend base 1280x1024.jsupLib

This trend viewer enable the JSup user to select the tag/pen to view, the scale, the color, the time range. The 1024x768 version also allows to view a secondary trend over the standard one to compare them. See standard JSup Trend window.

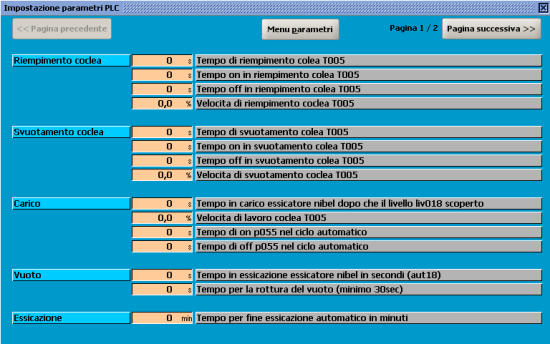

PLC Parameters
PLC Parameters.jsupLib

This library contains a popup windows useful to quickly setup many parameter pages. It use a parameter list file called parametri.txt in the application directory (a sample of this file is archived with this library set with the Excel file used to create it: the text files is pasted from the Excel file content).
A parameter page can be easily showed with a JavaCode like

Parametri.showParametriWindow( "V1573" );

where V1573 is the name of the "page" name (see the Parametri.xls file).
The parameter popup supports the UM of the displayed tags.
To save/load the application property Parametri.saveDir
For example

Parametri.saveDir=%JSUPHISTDIR%\plantName\Parameters

The will use the environment variable JSUPHISTDIR to locate the directory.

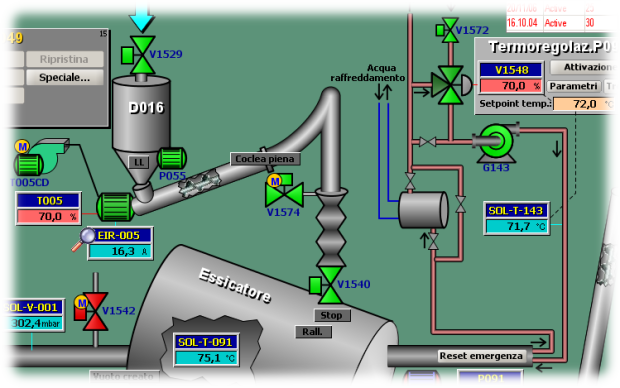

Sinottici v2
Sinottici v2.jsupLib

A set of library windows full of graphic library objects to be used to build nice synoptic of your automation plants (item status/control, measures, etc.)
A popup to control the automatic/manual state of an item is provided also.
The item control of this library is designed for a particular structure of the communication with the PLC.
More information will be provided in the Sinottivi V2 library page.

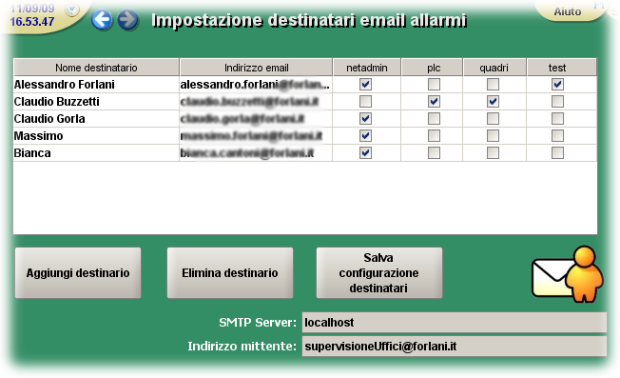

Alarm email send
InvioEmailAllarmi.jsupLib

This library contains a configuration window and some script used to setup the recipients of the alarm email automatically sent by the JSup system. See Invio email allarmi da JSup (Italian).

Windows tools library
WinBase 1024x768.jsupLib
WinBase 1280x1024.jsupLib

Contains a library window with some basic object to build the common part of application windows. You can build in a library window of yours a library object called (for example) TopBar a then you can place a reference to it in every replace window of the application.
